Popup Widget Help

Many of the operational layers are configured to use the Popup Widget.
Clicking on an operational layer feature anywhere within the extent of the map will open the Popup Widget.

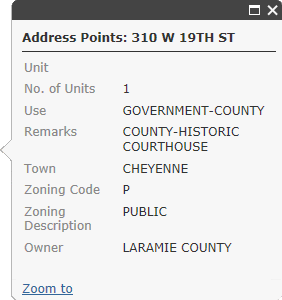

The Popup Widget displays selected attribute information from enabled operational layers.

Attribute information for features in the basemap layers may be attained by using the Identify Widget.
Additional attribute information may be attained by using the Identify Widget for features in the operational layers.

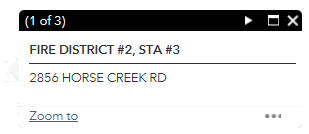

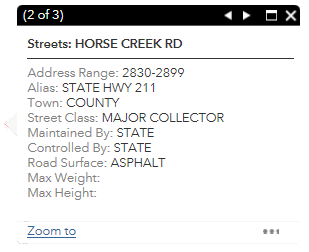

If multiple features are found the Popup Widget will display a "# of #" in the upper left corner as shown in the (1of 3) and (2 of 3) examples below.
See Popup Widget Controls below for information on displaying attributes of each of the features found.

Clicking on the Next Feature icon will display the attribute information for the next feature.
Clicking on the Previous Feature icon will display the attribute information for the previous feature.
Clicking on the Maximize icon will maximize the size of the Popup Widget window.
When the Popup Widget window is maximized clicking on the Restore icon will return the Popup Widget window to its original size.
Clicking on the Close icon will close the Popup Widget.
Some of the features like weather stations, web cameras and floodplain documentation contain hyperlinks to web pages or scanned images. Clicking on the hyperlink will open a web page, image or pdf file in a new window/tab.
