Print Help

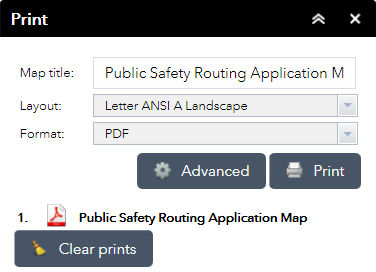

Clicking on the Print icon opens the Print widget shown here.
Clicking on the double up arrow collapses the widget and clicking on the double down arrow expands the widget.
Clicking on the X closes the widget.
Enter a title for the map in the Map Title text box.
Select the desired layout from the Layout pull down menu (Letter ANSI A Landscape works best for most maps).
DO NOT choose MAP_ONLY for the layout template. This template doesn't include the required Laramie County legal notice.
Select the desired format from the Format pull down menu (PDF is the recommended format).
Clicking on the Print button creates the map which is then downloaded and ready for printing or importing into other software.
The Clear Prints button will clear any existing prints from the application.

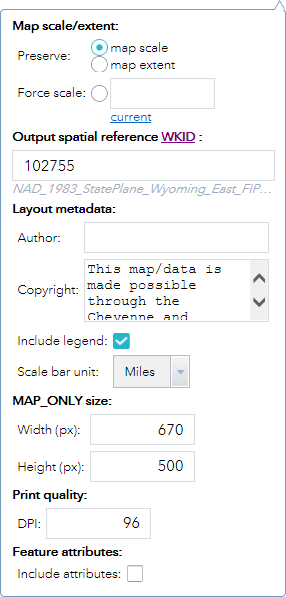

Select whether to preserve map scale, map extent or force scale by selecting the radio button next to the desired option.

Map scale will preserve the current scale of the map and may cut off some of the visible map when fitting the map to the layout.
Map extent will preserve the extent of the map when fitting the map to the layout but the printed map may not be as clear as preserving map scale.
Force scale allows you to print the map at a set scale. If you select Force scale you also need to enter the desired scale in the text box.
Clicking on the current text enters the current map scale into the Force scale text box.

Output spatial reference WKID: Defines the output of the spatial references of the print by specifying a valid well-known ID. Click on the WKID link for more information.
Author: Enter desired text in the Author text box. The text in this box will print just above the copyright text in the lower right corner.
Copyright: The text in this text box is set so that it can not be altered. It contains the required Laramie County disclaimer.
Include legend: This Option if checked adds a legend of the Operational Layers to layout.
Scale bar unit: Sets the units of the scale bar.
MAP_ONLY size specifies the size in pixels of the output if the MAP_ONLY template is used. Use only if you are going to manually add the required Laramie County disclaimer to the map.
Print quality DPI sets the dots per inch (dpi) of the output. In most cases the default 96 dpi should produce good results.
Include attributes: This option is disabled on this application and has no effect on the output.
